Drawing, Importing or Editing Field Boundaries

Video: Draw and Edit Field Boundaries in the Web App

Drawing Field Boundaries:

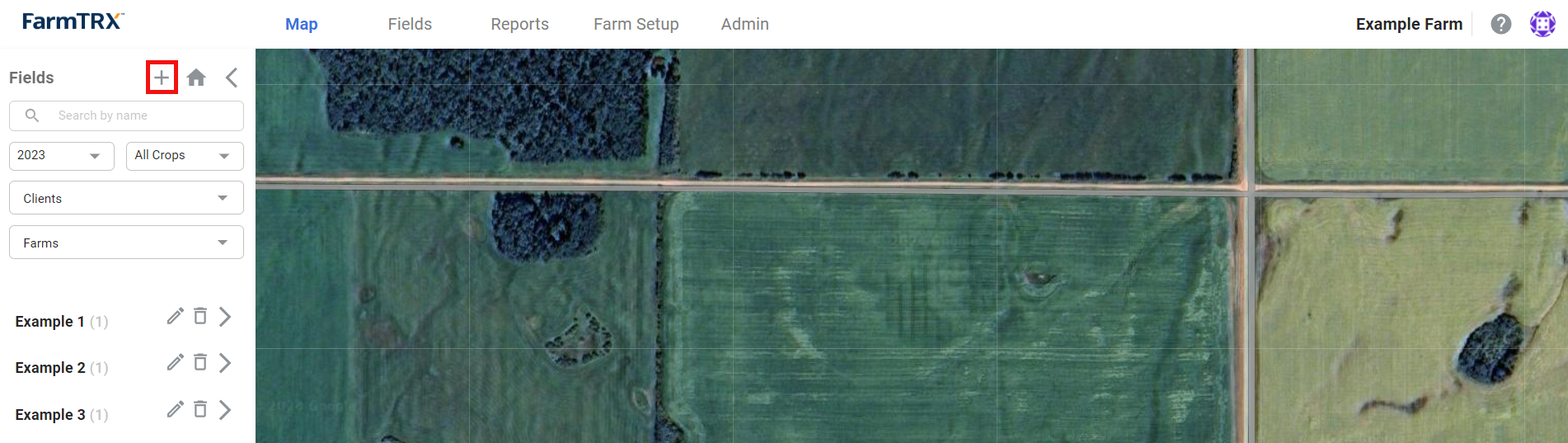

To draw the boundaries for a new field, click the icon in the left-hand sidebar to create the
field.

Select the Client and Farm name and and name the field.


To begin drawing click the icon and choose from the available
drawing tools. Once the field is defined, press to save the boundary.

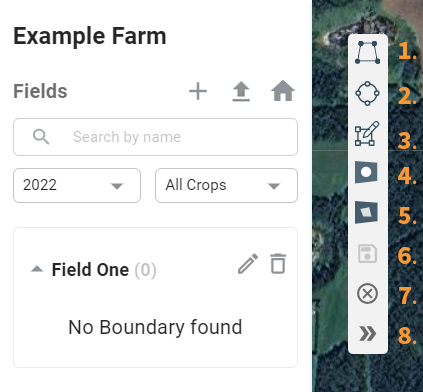

1. Draw Polygon - draw custom field
   shapes using anchor points
2. Draw Circle - best for center pivot fields
3. Edit Boundary - edit a drawn boundary
4. Draw Circular Hole
5. Draw Polygon Hole
6. Save
7. Cancel
8. Collapse

Uploading Field Boundaries:

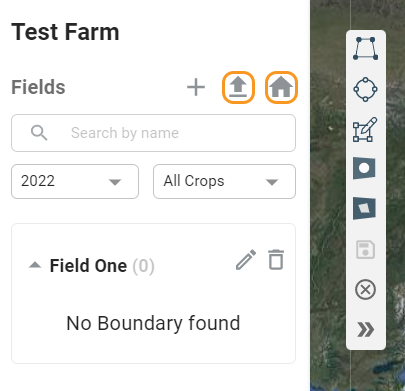

To upload field boundaries as .shp files, click the icon and select the appropriate
files from your computer.

Edit Field Boundaries:

To edit field boundaries click the icon and icon. Field boundaries can be customized at any time and should be reviewed yearly to confirm the area harvested is accurate.

Once changes have been made, click the icon to save the boundary.

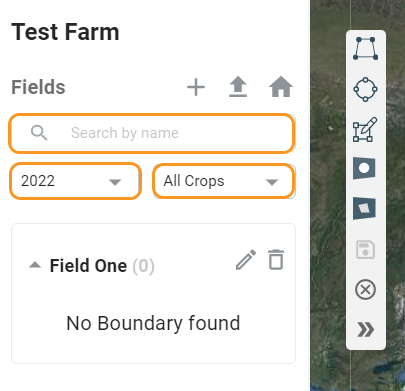

Use the search fields to filter out the created fields by name, year or crop type.
