Once the Header Height Sensor is oriented and calibrated in the FarmTRX Harvest app you
are ready to set max harvest height in the FieldView™ Cab App.
Watch a how to Youtube video here: Setting Max Harvesting Height In FieldView Cab

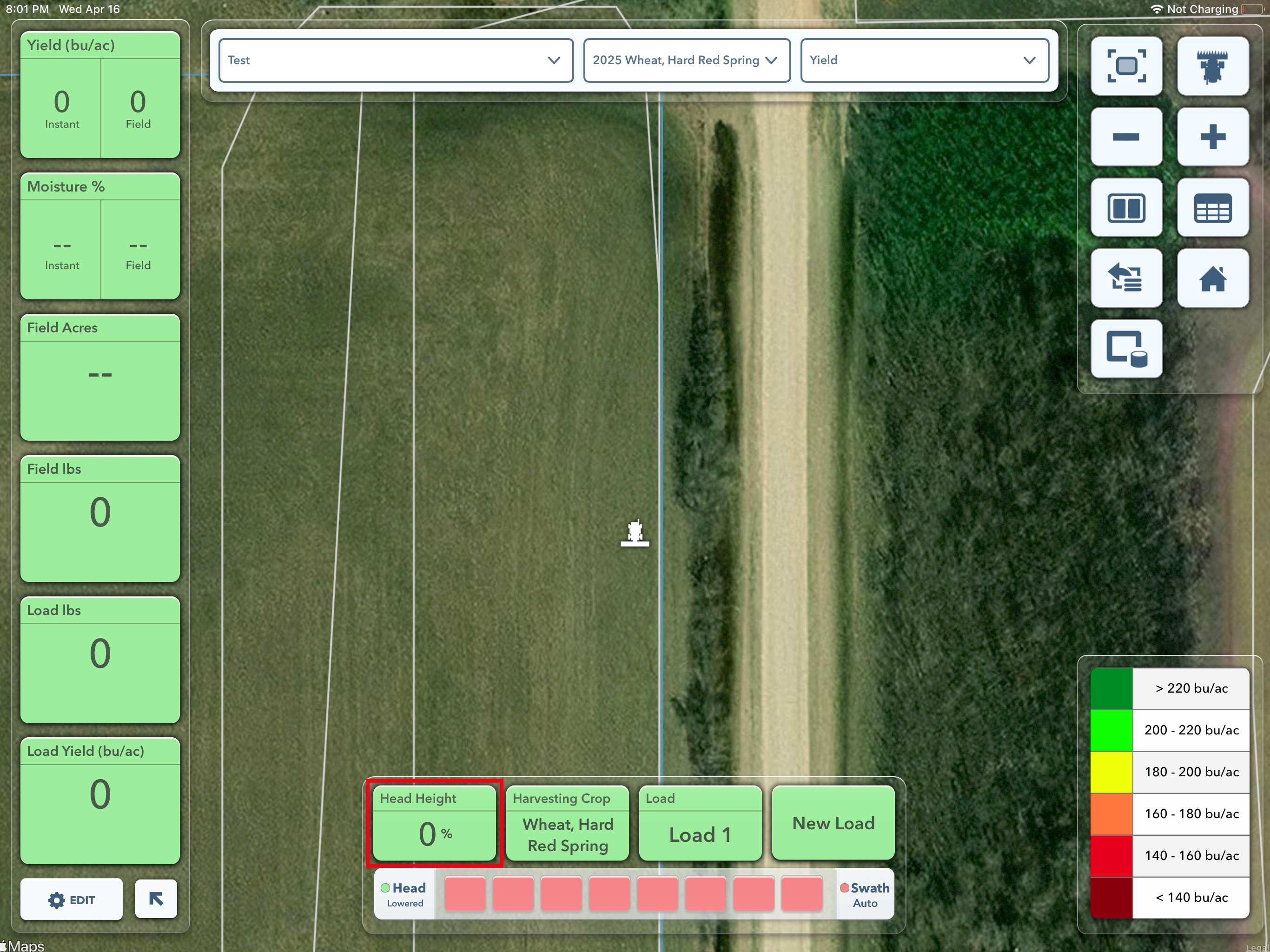

1. Click on the Head Height Tile to get started

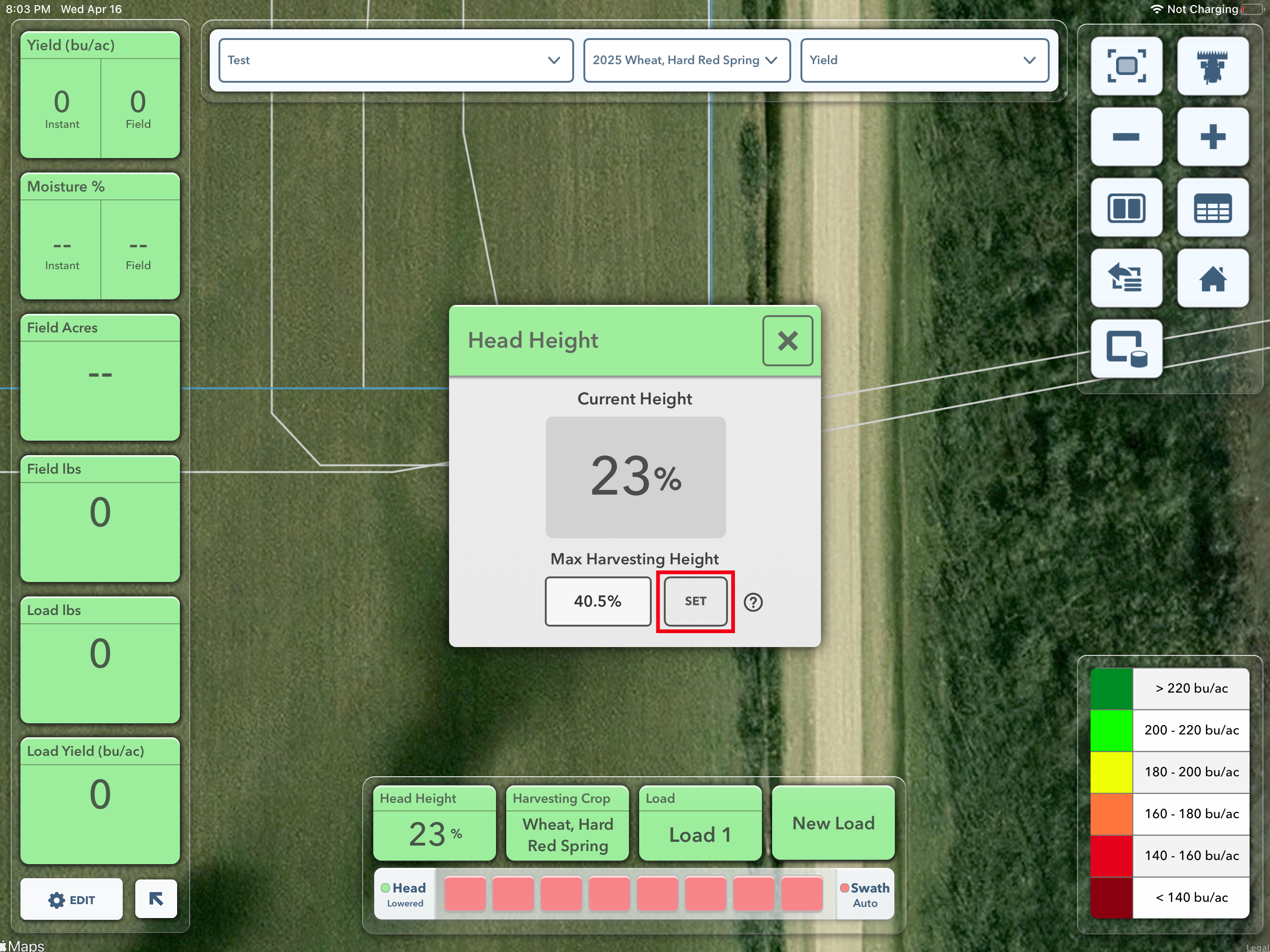

2. Select Set

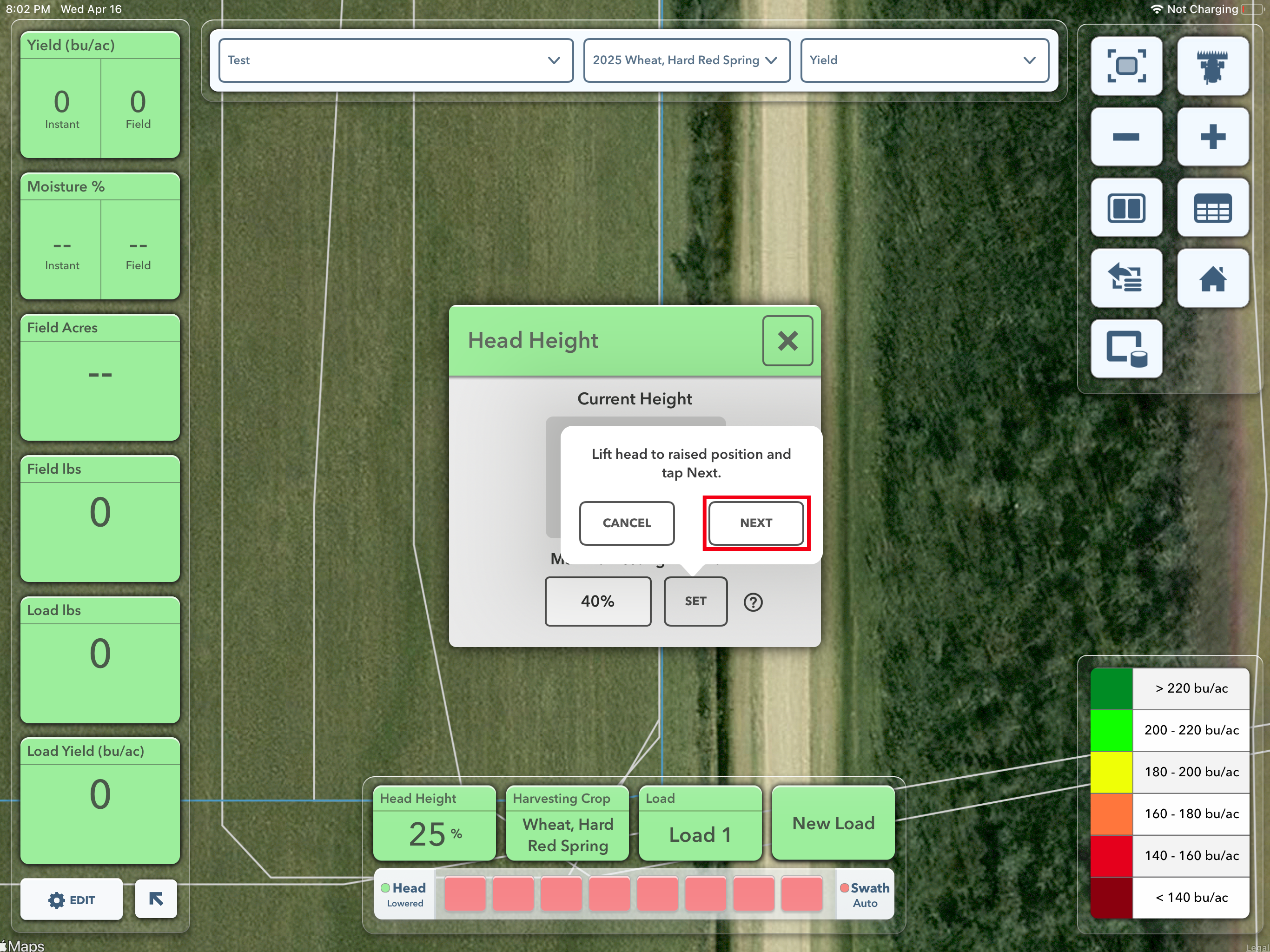

3. Lift head to fully raised position and select Next

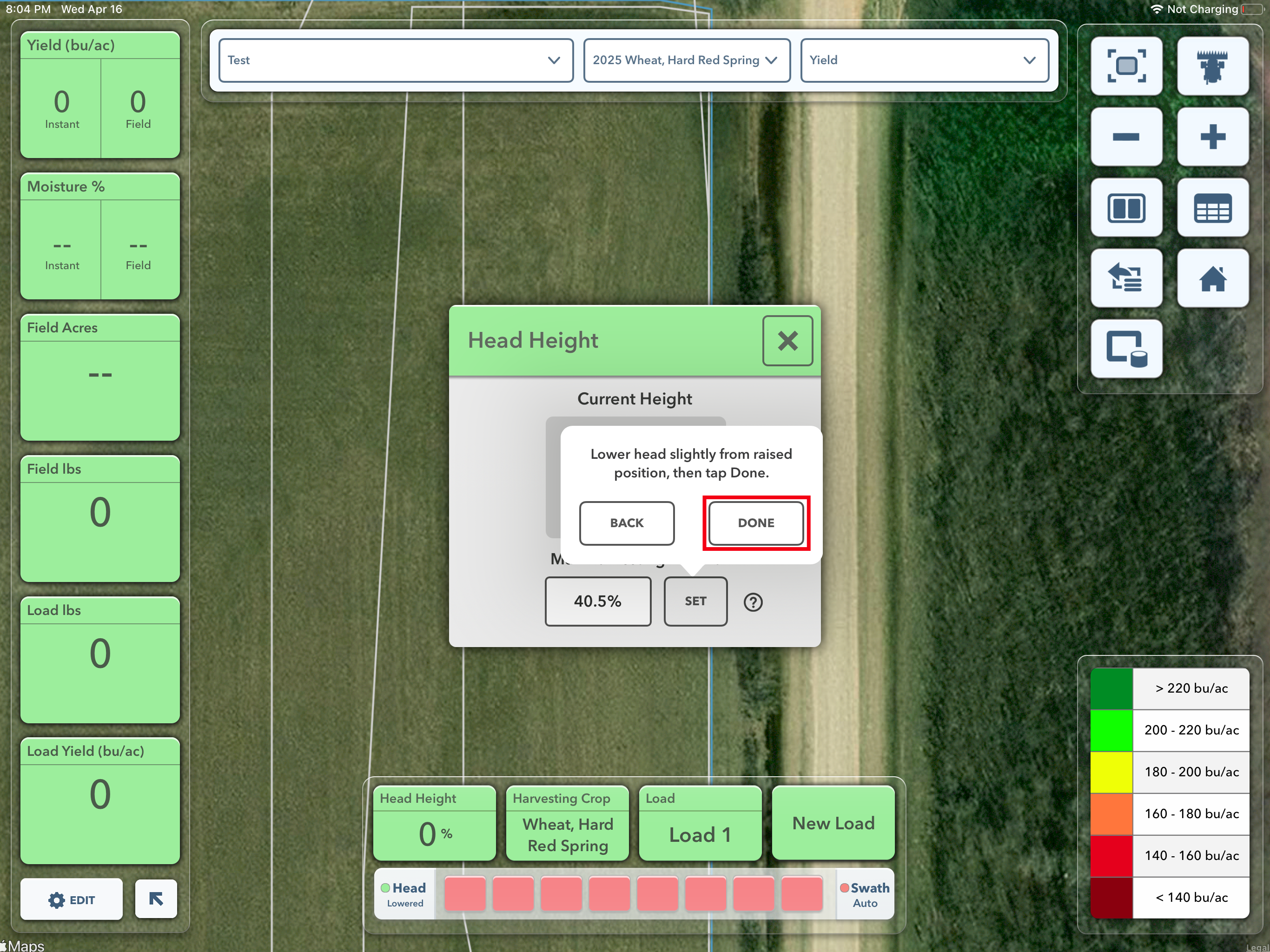

4. Lower the head to just above the maximum height you will be actively harvesting
then select Done

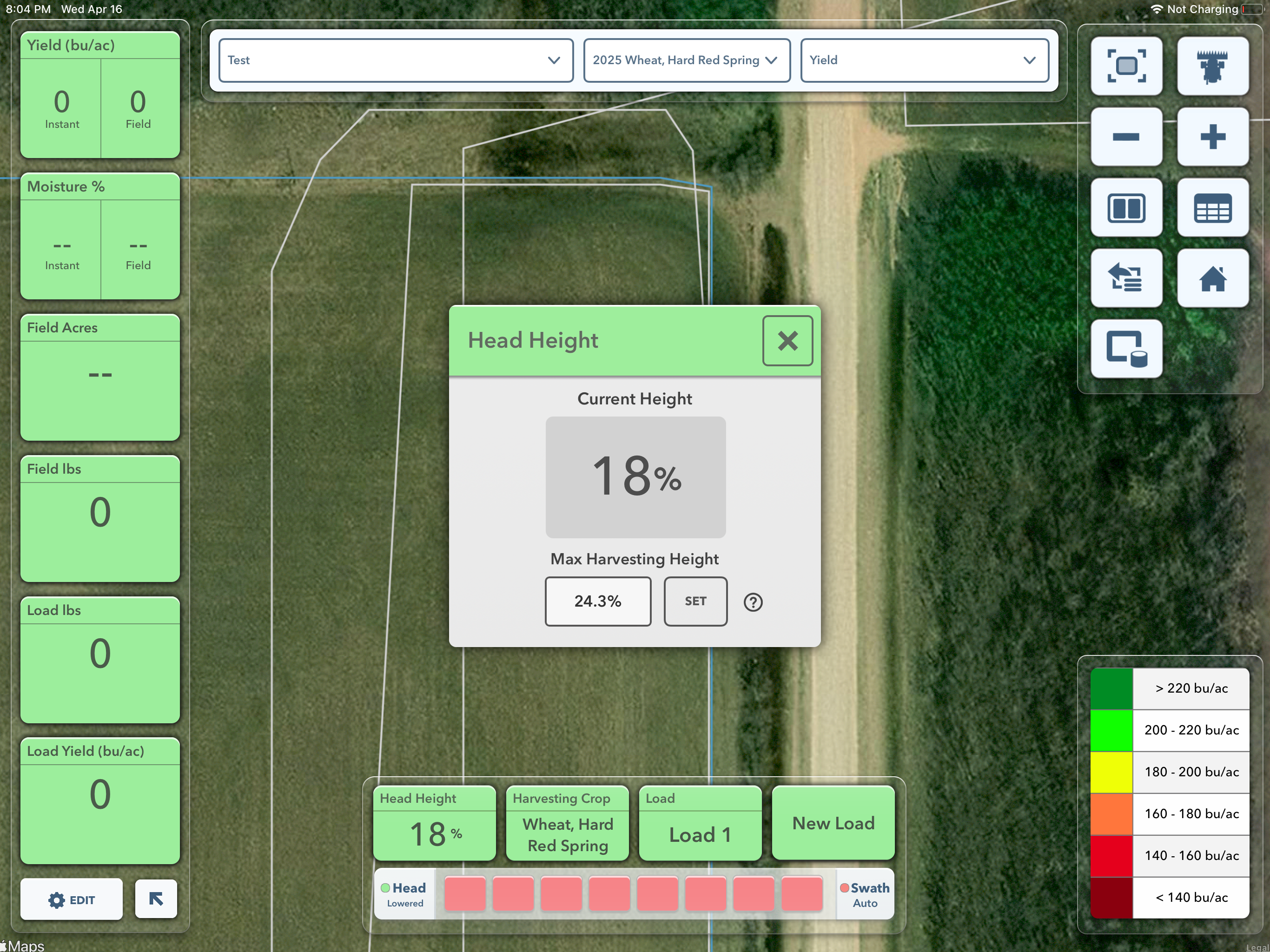

5. Your Max Harvest Height is now set in FieldView Cab App
