Adding a Custom Header
Step 1: Open the FarmTRX Mobile App
Launch the FarmTRX Mobile App on your phone or tablet.
Step 2: Connect to the Yield Monitor
Ensure Bluetooth® is enabled and that you are connected to your Yield Monitor.

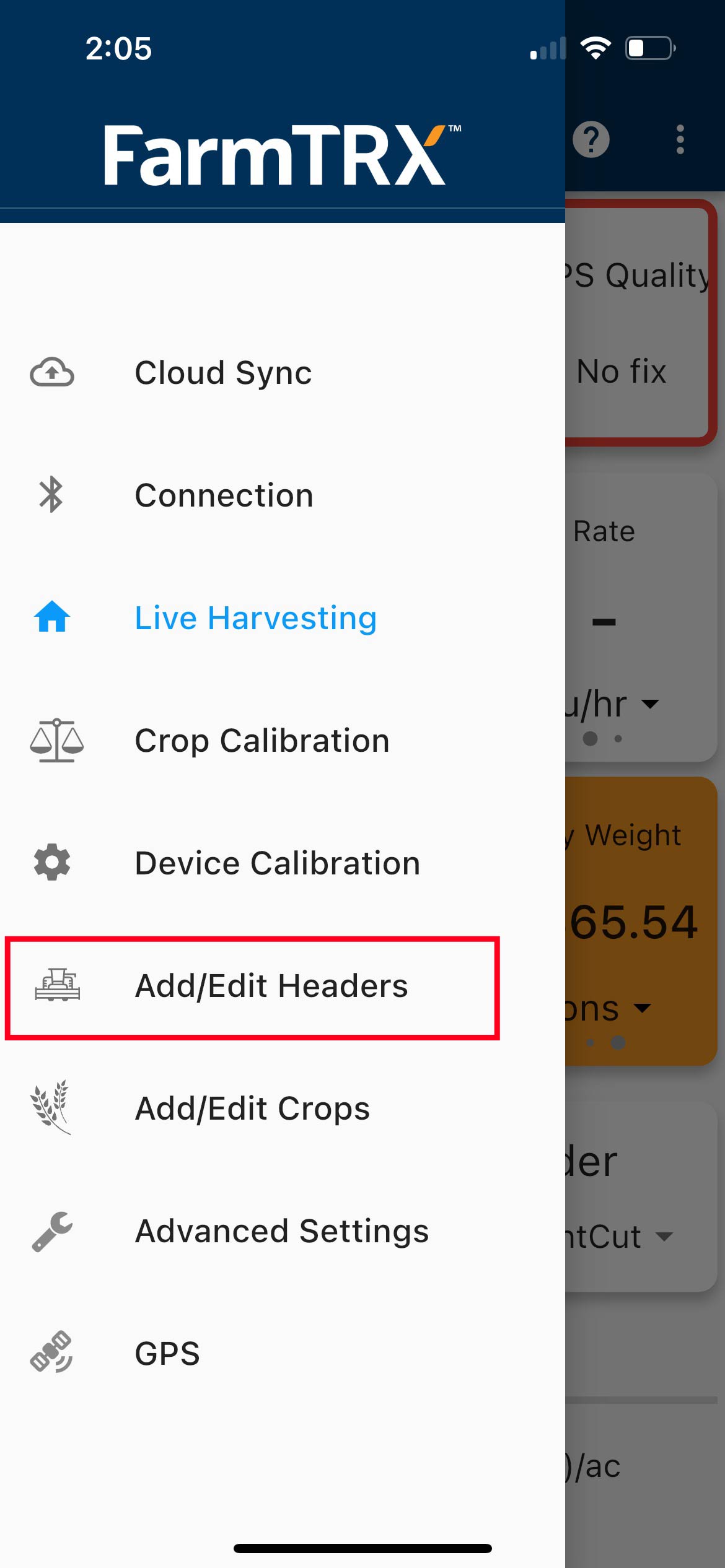

Step 3: Access Header Settings
Tap the Menu icon (☰) then select Add/Edit Headers

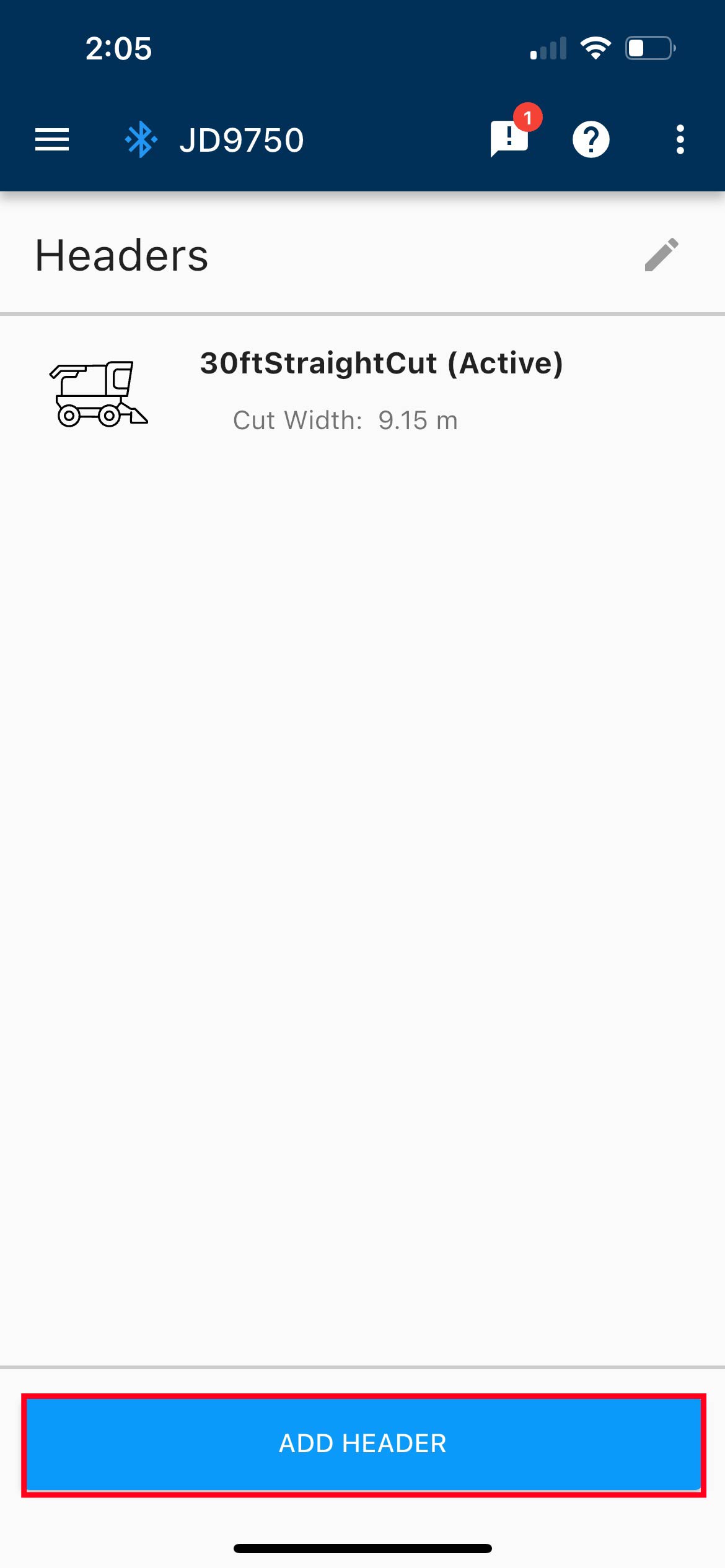

Step 4: Select Add Header

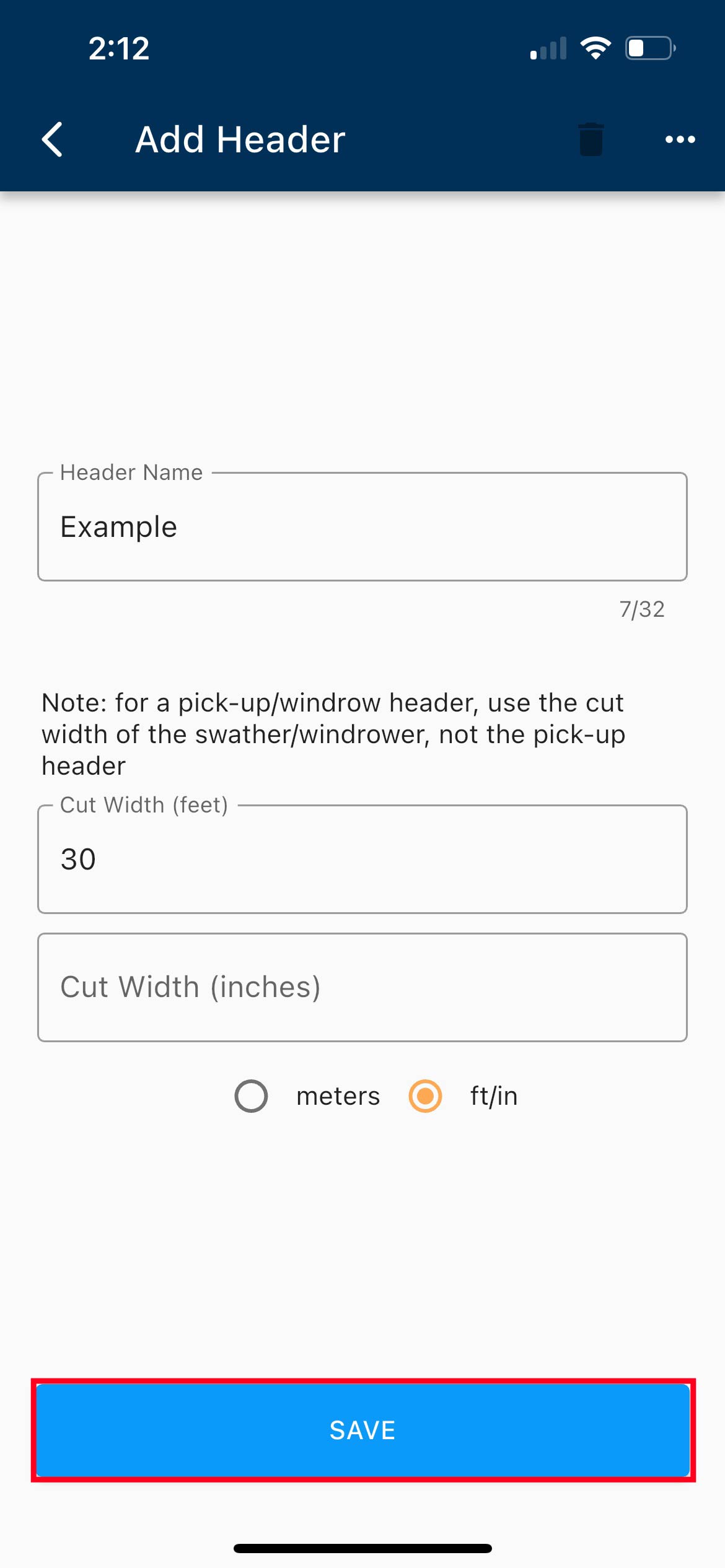

Step 5: Enter Header Information
Fill in the following information:
Header Name - Assign name e.g. 36ft Straight
Header (Cut) Width - Enter the cut width in feet or meters
Select Save
Repeat for all headers the combine may be using
Editing Headers
Step 1: Navigate to the Edit/Add Headers Screen
Open the FarmTRX Mobile App, tap the Menu icon (☰) in the top left-hand corner, then select Edit/Add Headers

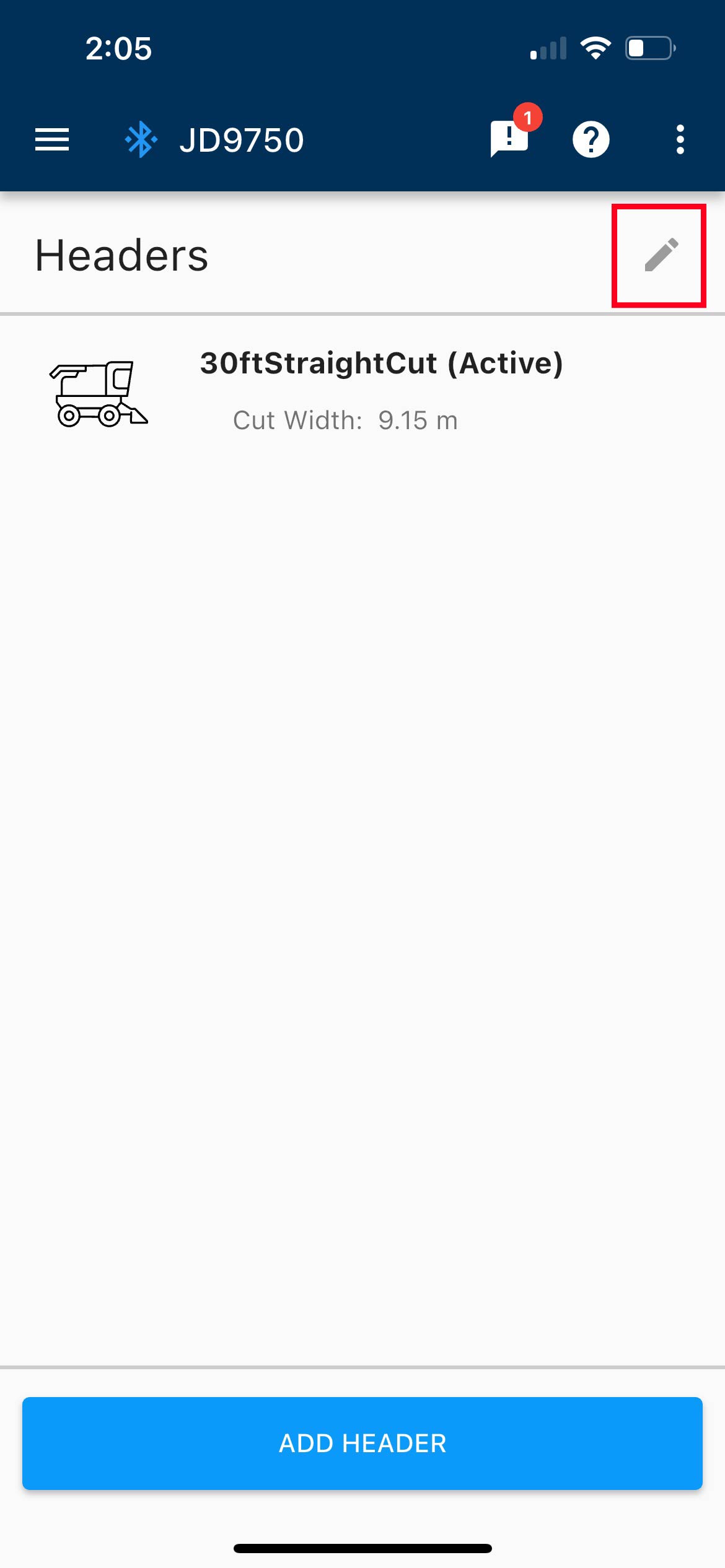

Step 2: Select the Header to Edit
From the list of existing headers, tap on the header you want to change.
Then tap the pencil icon to enter edit mode.
Step 3: Make Adjustments and Save
Update any of the available fields, such as:
-
Header Name
-
Header (Cut) Width
After making your changes, tap Save to apply the edits.
Tip: Make sure the correct header is selected before beginning harvest to ensure accurate yield mapping.
